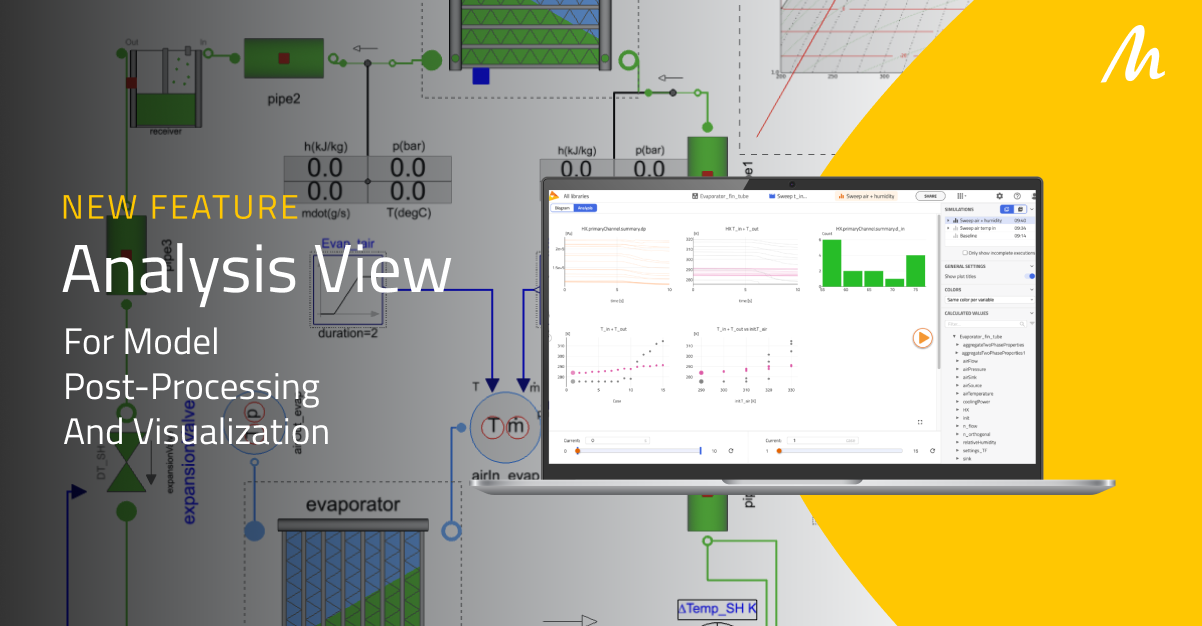

Analysis View: Simpler, Faster Post-Processing & Visualization

Learn about Modelon Impact’s latest data visualization feature.

Take system modeling and simulation to the next level with Modelon Impact’s new Analysis View—a dedicated space to explore, compare, and interpret simulation results. Available to all Modelon Impact Cloud customers, Analysis View makes it easier to extract key insights and improve your system designs.

Effortless Multi-Case Comparisons

You can quickly analyze and compare results from multiple experiment cases with Analysis View. This is ideal for evaluating model variants under different operating conditions.

Modern, Adaptive Visualization

Our responsive plotting framework automatically adjusts to your screen size, keeping your workspace clean and efficient. Customize layouts dynamically to fit your analysis needs.

Auto-save Plot Setups in Analysis View

No need to remake plots—your plot configurations are automatically saved. Share workspaces with your analysis view pre-saved and help non-technical stakeholders gain insights from your simulations.

Synchronized Zoom for Faster Insights

Navigate large datasets effortlessly with a single time slider that synchronizes zoom across all plots. Focus on key moments in your simulation for a more intuitive analysis experience.

Ready to experience intuitive and detailed simulation analysis?
